Enter the Altum Multispectral and Thermal Imaging solution we have all been waiting for available now at Sky Flight Robotics Inc.

Integratio​n Options
Altum with DLS2.jpg

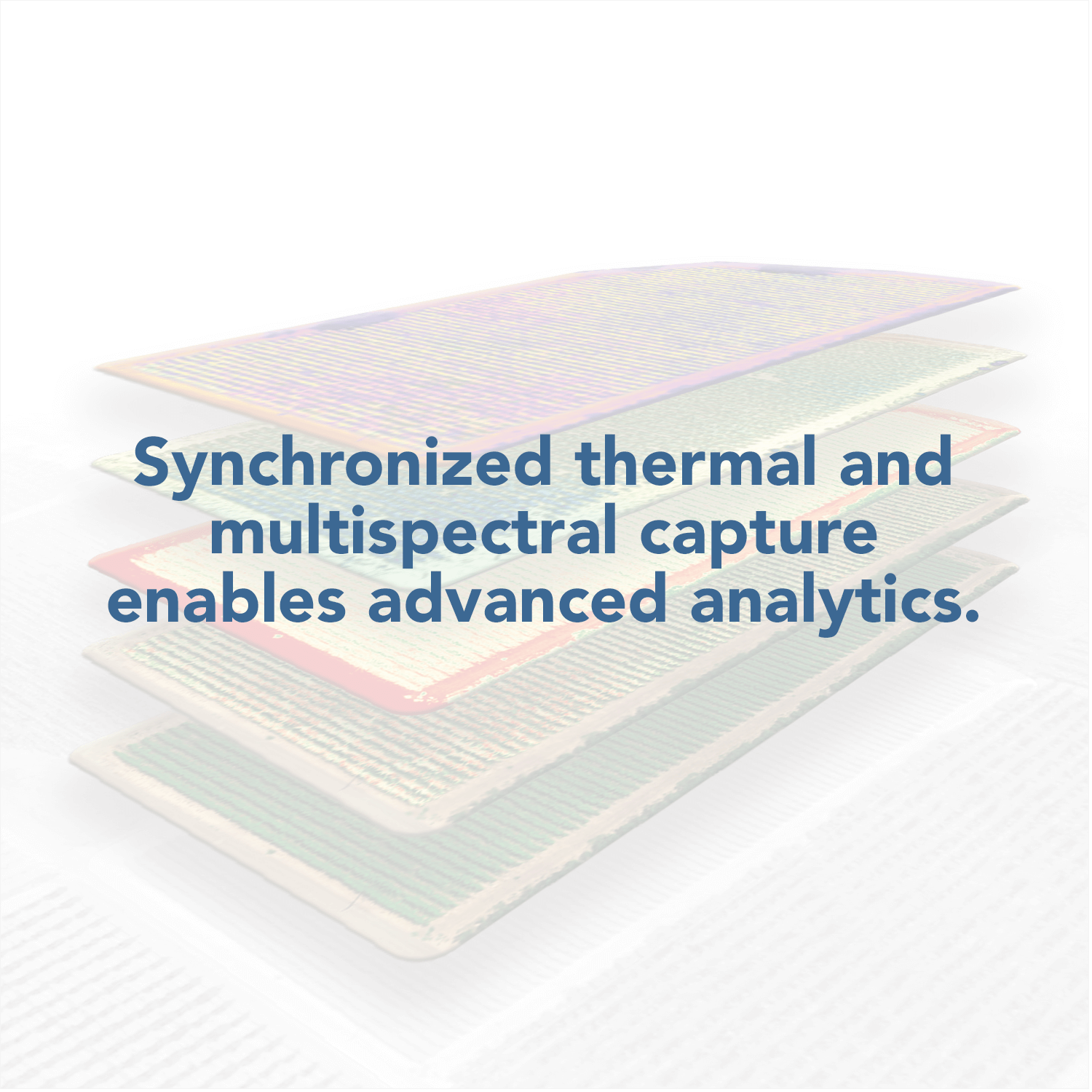

More Layers means more detailed data.

More Layers means more detailed data.

DLS 2     Altum comes with DLS 2, our next generation light sensor. With cutting-edge technology for irradiance and sun angle measurements, it provides more accurate, reliable data,  substantially improves radiometric accuracy,  and greatly  reduces post-processing time.   And, because it also contains an  integrated GPS,  setup with any aircraft is streamline

DLS 2

Altum comes with DLS 2, our next generation light sensor. With cutting-edge technology for irradiance and sun angle measurements, it provides more accurate, reliable data, substantially improves radiometric accuracy, and greatly reduces post-processing time.

And, because it also contains an integrated GPS, setup with any aircraft is streamline

Benefits Recap:

  • Capture aligned high-resolution, multispectral, and thermal imagery using only one sensor. Generate analytics for phenotyping, irrigation, and plant health from one data set.

  • Improved resolution means more accurate digital surface models, easier stitching at lower altitudes, and better plant classification and plant counting.

  • High-capacity USB storage means you can fly longer and cover more acreage. No more changing SD cards!

  • Fast capture rate enables faster flight speeds and lower flight altitudes.

  • Communication and triggering options allow for a customized integration; choose the configuration that best suits your project.

  • Standard 16 bit TIFF file ouputs give you full access to raw data so you can process it on the platform of your choosing.

  • DLS 2 features enhanced reflectance calibration, and combined GPS and DLS to simplify integration.

Weight:Altum + DLS 2: 406.5 g (14.34 oz)
Altum: 357 g (12.6 oz)
DLS2: 49 g (1.73 oz)
Wi-Fi Adapter: 2 g (0.07 oz)
USB stick: 9 g (0.32 oz)Dimensions:8.2 cm x 6.7 cm x 6.45 cm
(3.2 in x 2.6 in x 2.5 in)External Power:4.9 - 25.2 VPower Input:5.5/7.0/10W (standby, average, peak)Spectral Bands:Blue, green, red, red edge, near infrared (NIR)RGB Color Output:High-resolution, global shutter, aligned with all bandsThermal:LWIR thermal infrared8-14um. Radiometrically calibratedSensor Resolution:2064 x 1544 (3.2 MP per EO band) at 120m (400ft) AGL 81cm per pixel (thermal) at 120mGround Sample Distance (GSD):5.2 cm per pixel (per EO band) at 120 m (~400 ft) AGL
81 cm per pixel (thermal) at 120 mCapture Rate:1 capture per second (all bands), 12-bit RAWInterfaces:Aircraft: Trigger input, top of frame out, 1 PPS out. 3.3V isolated IO
2x USB 3.0 SuperSpeed ports for WiFi or Ethernet and USB 3.0 StorageField of View:48° x 37° (multispectral)
57° x 44° (thermal)Focal Length:8 mm (multispectral)
1.77 mm (thermal)Storage:USB 3.0 compatible storage devices


MicaSense Altum: A revolutionary new 3-in-1 solution for unparallelled sensing in a compact package.

The ultimate solution for accuracy, flexibility, and power. Altum captures synchronized thermal,

multispectral, and high resolution imagery in one flight, producing aligned outputs for advanced

analytics. Capture data on plant health, phenotype, and water stress in a single flight. Fly longer with

unlimited USB storage. Integration is simple with multiple interface options and embedded mounting

points.

Kit Contents //

● Altum sensor

● Lens cover

● External storage device (USB 3.0) - 128 GB

● Calibrated Reflectance Panel

● New DLS 2 light sensor with integrated

● GPS

● Camera and light sensor cables

● Mounting screws

● Hard carrying case

Key Specifications //

Weight 357 grams

Power 5.5/7.0/10W (standby, average, peak)

Center Wavelengths Blue 475 nm, Green 560 nm, Red 668 nm, Red edge 717 nm,

Near infrared 840 nm, and Thermal 11 μm

Storage High capacity USB 3.0 storage.

Radiometric Calibration Thermal and multispectral sensors are radiometrically calibrated

DLS 2 With an integrated GPS, DLS 2 is our most accurate light sensor yet. With patented, cutting-edge technology, it provides more accurate and reliable data

DJI Inspire 2 with Sky Flight Robotics Integration kit and Altum Sensor and Zenmuse X4s gimbal.

DJI Inspire 2 with Sky Flight Robotics Integration kit and Altum Sensor and Zenmuse X4s gimbal.

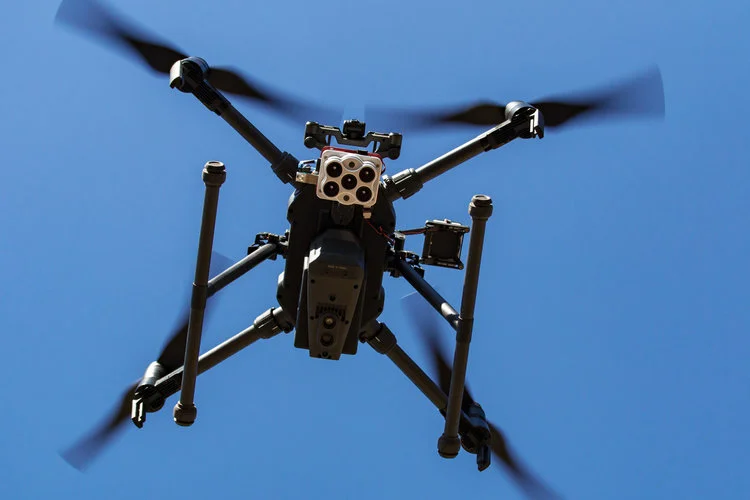

DJI Matrice 200,210 Integration kit installed with Altum sensor

DJI Matrice 200,210 Integration kit installed with Altum sensor
