Trinity F90+

No Compromise. Just Fly.

The Trinity combines high efficiency, flexible mission capabilities, and a small, portable footprint. The result is the world’s most compact VTOL fixed-wing drone available today!



BASE PACKAGE CONTENT

TECHNICAL DATA

Max. Take-off Weight 5.0 (11.0 lbs)

Max. Flight time 90 min*

Max. Range (Area) 100 km = 700 ha (62 mi = 1730 ac)

Command and Control Range 5-7.5 km** (3.1 - 4.7 mi)

Payload (with compartment) max. 700 g (1.54 lbs)

Optimal Cruise Speed 7 m/s (13.6kn)

Wind resistance (ground wind) up to 12 m/s (13.6 kn)

Wind resistance (in cruise flight) up to 12 m/s (23.3 kn)

Wingspan 2.394 m (7.48 ft)

Transport case dimension (39.4x32.7x10.6 inch)




Trinity F90+

PPK combined with the advantages of a fixed-wing. The “F90+” extension provides the Trinity with additional functionalities such as PPK, ADS-B as well as ACSL (Anti collision strobe lights) and the iBase as ground reference station.


TRINITY F90+

Price: starting at $16,900 USD

THE NEXT EVOLUTIONARY STEP FOR eVTOL UAVS

Improved specifications such as PPK, live air traffic (ADS-B) and collision lights combined with an unrivaled price make the Trinity F90+ the most attractive bundle on the current market!

Ask us about Educational and Governmental institution discounts!!



Base - Ground Reference Station

iBase is an entry level GNSS reference station. It automatically logs GNSS reference measurements on the ground to a file on a micro SD card. This file enables QBase3D to do PPK processing of the data collected in flight, to reach the data geotagging relative precision of down to 2-5 cm (in respect to the point where the iBase antenna is placed).

QUANTUM-SYSTEMS ABOUT PPK & RTK

PPK and RTK (post-processing kinematics and real-time kinematics) are the algorithms that allow the user to cancel most of GNSS errors via processing data from two receivers that are close enough to each other.
They share the same common errors for most error sources such as ionospheric and tropospheric influence on the signal transmission, satellites ephemeris and clock errors.
As is clear from the names, RTK is performed in real time, PPK – in post-processing.

When properly applied, these algorithms reduce positioning errors from several meters (typical for standalone GNSS receivers) down to several centimeters.

The Quantum Systems current approach of choice is PPK:

  • The base station on the ground must be deployed and georeferenced (if high absolute precision is required) for RTK, PPK can make use of already pre-deployed continuously operating reference stations (a dense enough network of these exists e.g. in USA, Europe, Australia, Japan). If you operate with your own reference station, the data can be logged and used in post processing just as well.

  • The real-time corrections transfer from the ground station adds additional complexity to the system for RTK, and thus reduces reliability.

  • The so called forward-backward processing is possible in post-processing, which raises the precise positioning reliability.

  • With our QBase mission planning software we have created a simple and straightforward process of applying PPK to your mission data. The UI enables you to choose different sources of PPK reference data to optimize your results.

OPEN SOURCE PAYLOAD COMPARTMENT MORE OPTIONS THAN THE COMPETITION!!

The Trinity is the perfect platform for your industrial applications in the areas of agriculture, forestry, mining, and 3D reconstruction. If there is a use case we don’t cover yet, we work with our customers on individual solutions!

In order to support your project, we offer the 3D files of our cargo compartment for free to enable you to adapt it to your mission profile.

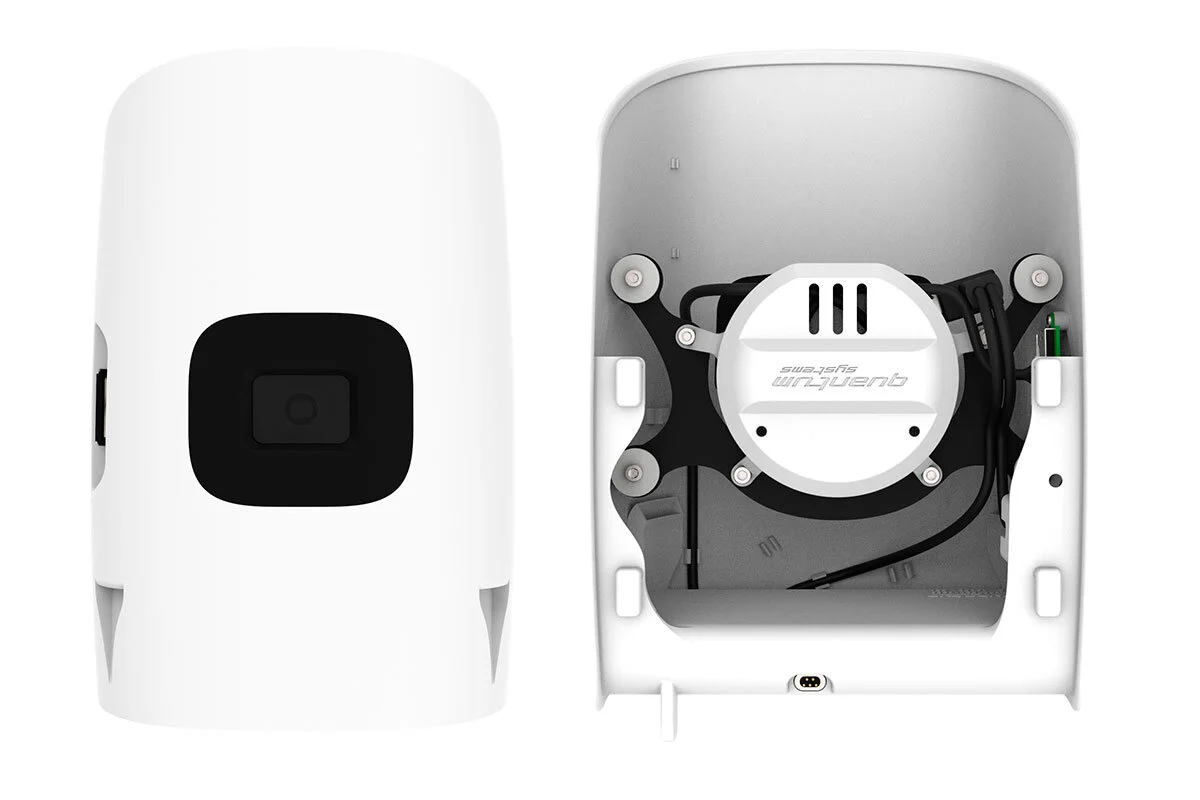

Survey Payload Compartment (SPC)   The Sony UMC-R10C 20,1 MP (APS-C, (23,2 x 15,4 mm) Exmor® CMOS) Sensor is our recommended sensor for applications like surveying & mapping, archeology, mining, stock volumes, geotechnical engineering, GIS, disaster control, civil engineering and forestry. It features good inner orientation, a low distortion and fast shutter speeds necessary for our UAVs.   Results  True RGB orthophotos (DOP), Digital Terrain Models (DTM), Digital Surface Models (DSM), Dense RGB Point Clouds (XYZ,LAS,…), 3D Models (OBJ, DXF,PLY,STA, …)

Survey Payload Compartment (SPC)

The Sony UMC-R10C 20,1 MP (APS-C, (23,2 x 15,4 mm) Exmor® CMOS) Sensor is our recommended sensor for applications like surveying & mapping, archeology, mining, stock volumes, geotechnical engineering, GIS, disaster control, civil engineering and forestry.
It features good inner orientation, a low distortion and fast shutter speeds necessary for our UAVs.

Results
True RGB orthophotos (DOP), Digital Terrain Models (DTM), Digital Surface Models (DSM), Dense RGB Point Clouds (XYZ,LAS,…), 3D Models (OBJ, DXF,PLY,STA, …)

Price: $2,299 USD

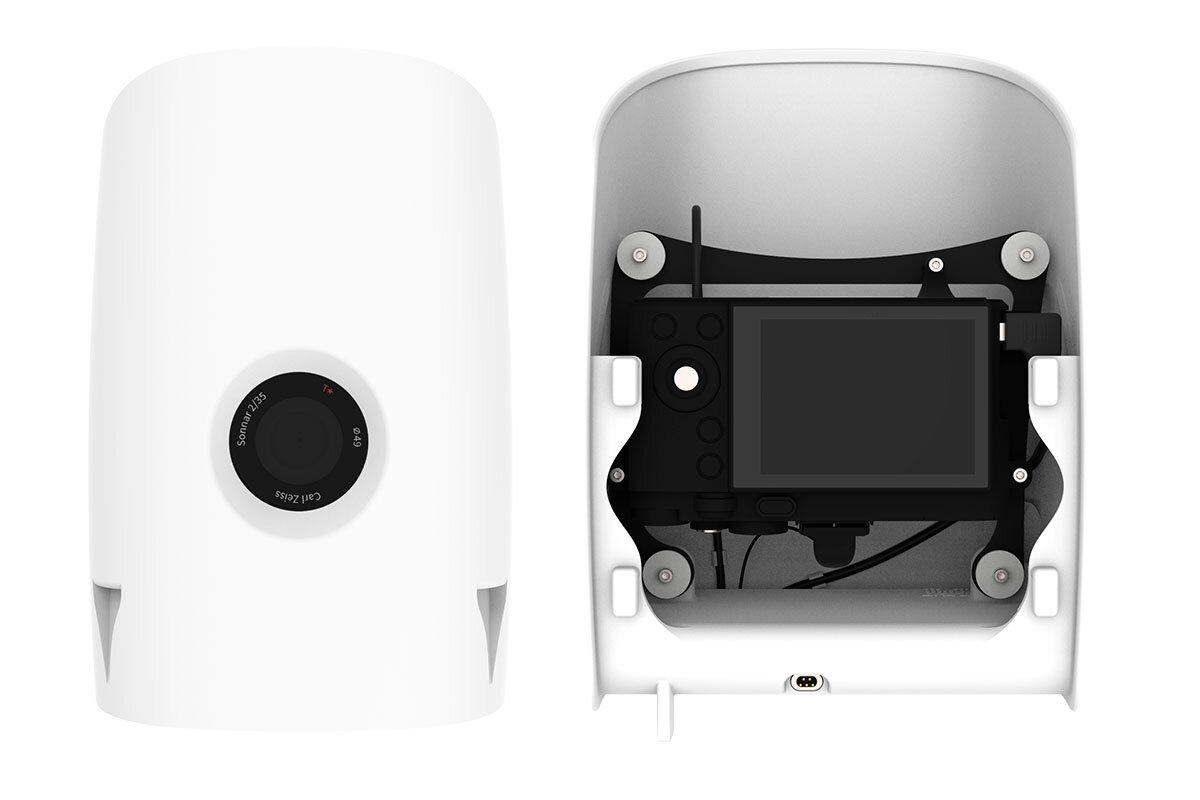

Sony RX1R II    Full-frame 42 MP camera   * Orthophoto & DEM  * Point clouds & 3D models  * 1.29cm/px @ 100m altitude

Sony RX1R II

Full-frame 42 MP camera

* Orthophoto & DEM

* Point clouds & 3D models

* 1.29cm/px @ 100m altitude

Sony RX1R II Payload Price $5,299

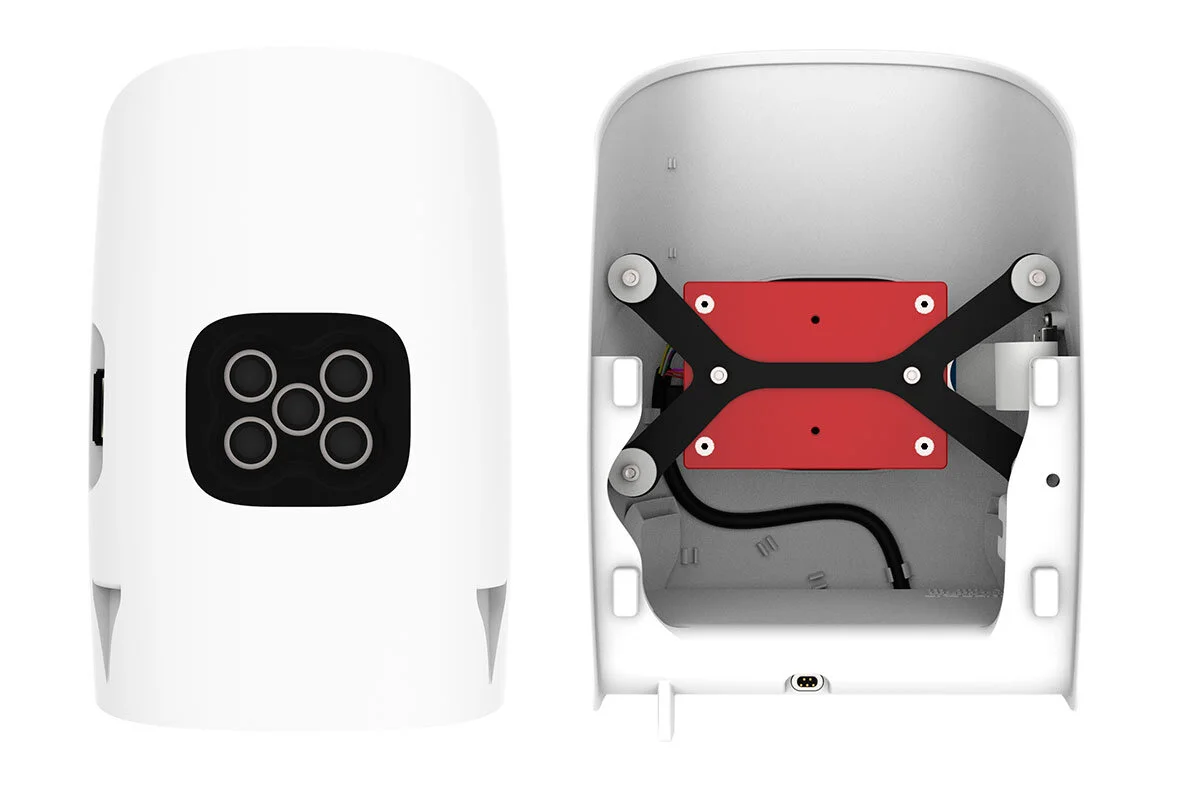

RedEdge-MX    5 spectral band sensor   * RGB data with 6.94cm/px @100m altitude  * Multispectral data for vegetation analysis  * 1 flight => orthophoto (5bands) & DEM & point cloud  * Various indices for plant stress and health analysis

RedEdge-MX

5 spectral band sensor

* RGB data with 6.94cm/px @100m altitude

* Multispectral data for vegetation analysis

* 1 flight => orthophoto (5bands) & DEM & point cloud

* Various indices for plant stress and health analysis

MicaSense RedEdge MX payload Price $6,900


CPC Professional Package, Sony UMC and MicaSense RedEdge- MX   This package combines RGB and NDVI sensors and offers the best of both worlds!  It is ideal for applications involving advanced agricultural analytics like growth & health monitoring, volume calculation and insurance projects.   Results  True RGB and multispectral orthophotos (DOP), NDVI maps, application maps (ISO-XML), HiRes Digital Terrain Models (DTM), HiRes Digital Surface Models (DSM), Dense RGB Point Clouds (XYZ,LAS,…), 3D Models (OBJ, DXF,PLY,STA, …), Tree Counts, Plant Counts, plant height monitoring,…

CPC Professional Package, Sony UMC and MicaSense RedEdge- MX

This package combines RGB and NDVI sensors and offers the best of both worlds!

It is ideal for applications involving advanced agricultural analytics like growth & health monitoring, volume calculation and insurance projects.

Results
True RGB and multispectral orthophotos (DOP), NDVI maps, application maps (ISO-XML), HiRes Digital Terrain Models (DTM), HiRes Digital Surface Models (DSM), Dense RGB Point Clouds (XYZ,LAS,…), 3D Models (OBJ, DXF,PLY,STA, …), Tree Counts, Plant Counts, plant height monitoring,…

Double Payload Sony UMC + Micasense RedEdge-MX Price: $8,449 USD


MicaSense Altum    5 spectral bands & thermal infrared sensor   * RGB data with 4.31cm/px @100m altitude  * Multispectral data + thermal layer for enhanced analysis  * 1 flight => orthophoto (6bands) & DEM & point cloud  * Various indices for plant stress and health analysis

MicaSense Altum

5 spectral bands & thermal infrared sensor

* RGB data with 4.31cm/px @100m altitude

* Multispectral data + thermal layer for enhanced analysis

* 1 flight => orthophoto (6bands) & DEM & point cloud

* Various indices for plant stress and health analysis

MicaSense Altum Payload price $11,990
